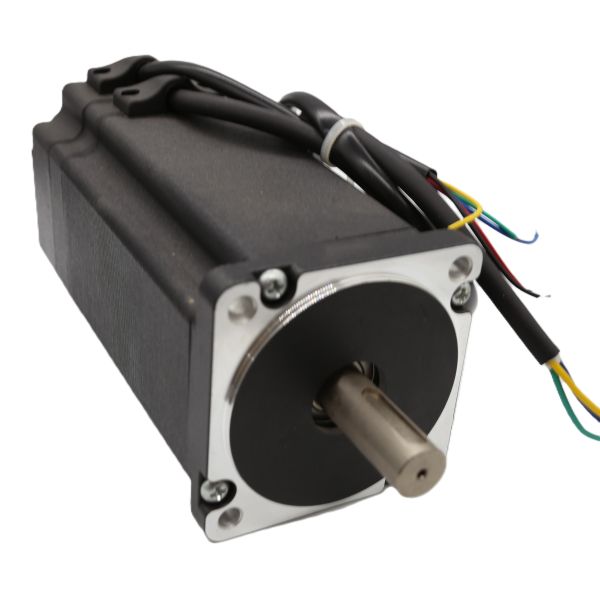

1.8° Step Angle 57mm Hybrid Servo Motor Brake Stepper Motor Two Phase

Name: 18 Step Angle 57mm Hybrid Servo Motor Brake Stepper Motor Two Phase
Brand: XM-Motor
Price: 1 USD

Cheap 1.8° Step Angle 57mm Hybrid Servo Motor Brake Stepper Motor Two Phase for sale

Brand Name : XM-Motor

Model Number : 1.8° 57mm Two - phase Hybrid Brake Stepping Motor

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000PCS

Price : 1~10 USD/PC

Payment Terms : L/C, T/T, D/P

Supply Ability : 100,000 PCS/month

Delivery Time : with in 35days

Packaging Details : packed with CTN

Name : Hybrid Servo Motor

Material : black or customized

size : standard

packing : CTN or customized

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

colour : customized

color : customized

Contact Now

1.8° 57mm Two - Phase Hybrid Brake Stepping Motor Ambient Temperature) -20℃~+50℃ (Dielectric Strength): 500VAC For 1minute

General Specifications

(Item)	(Specifications)
(Step Angle)	1.8°
Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	75N (20mm from the flange)
(Max. axial force)	15N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L1)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

Brake Specification:

Model	BK2
Torque(N-m)	2
Voltage(V)	24V
L2 Length(mm)	32

Dimensions:(Unit=mm) 1.8° Step Angle 57mm Hybrid Servo Motor Brake Stepper Motor Two Phase

Product Tags:

57mm Hybrid Servo Motor

Hybrid Servo Stepper Motor

Brake Stepper Motor Two Phase

1.8° Step Angle 57mm Hybrid Servo Motor Brake Stepper Motor Two Phase Images
